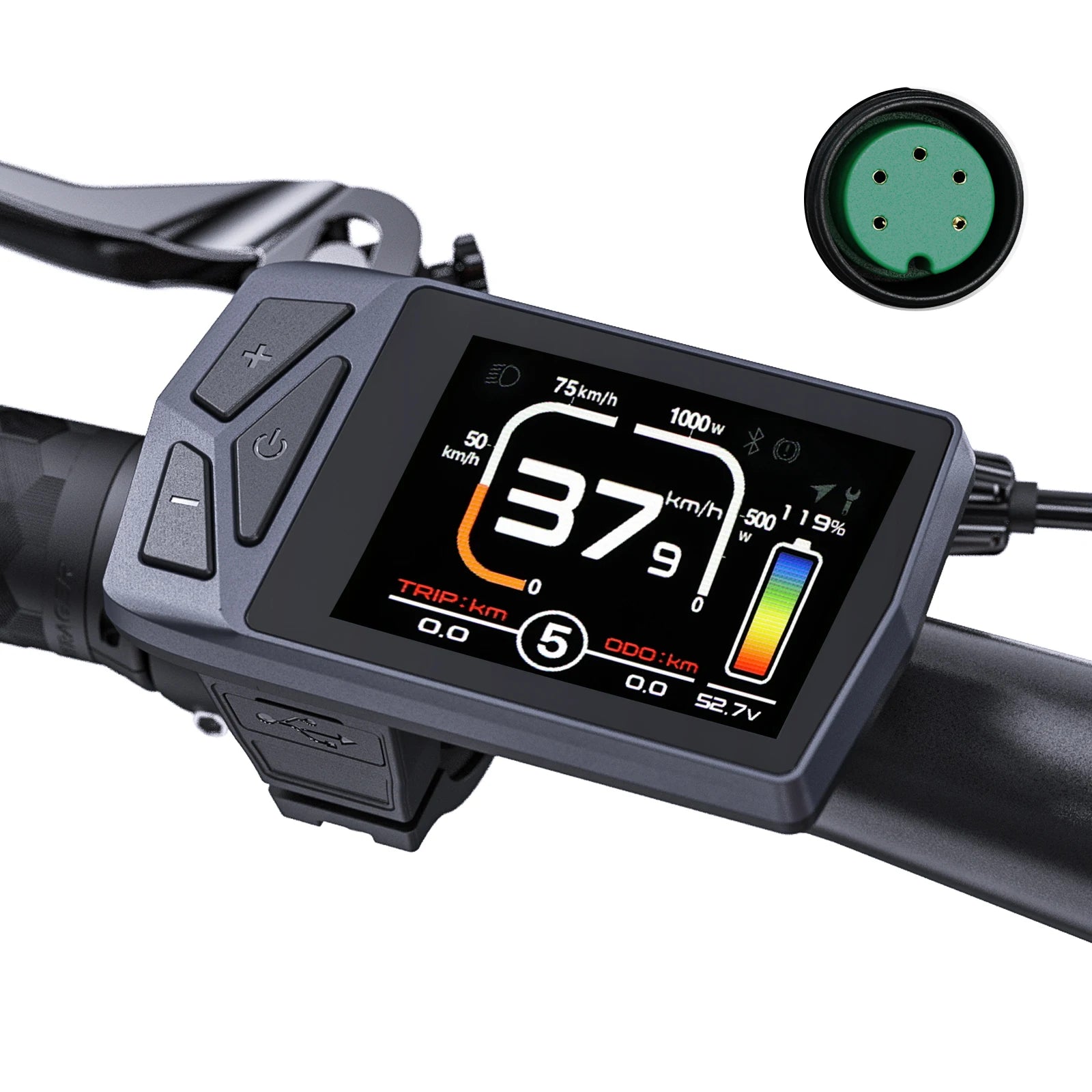

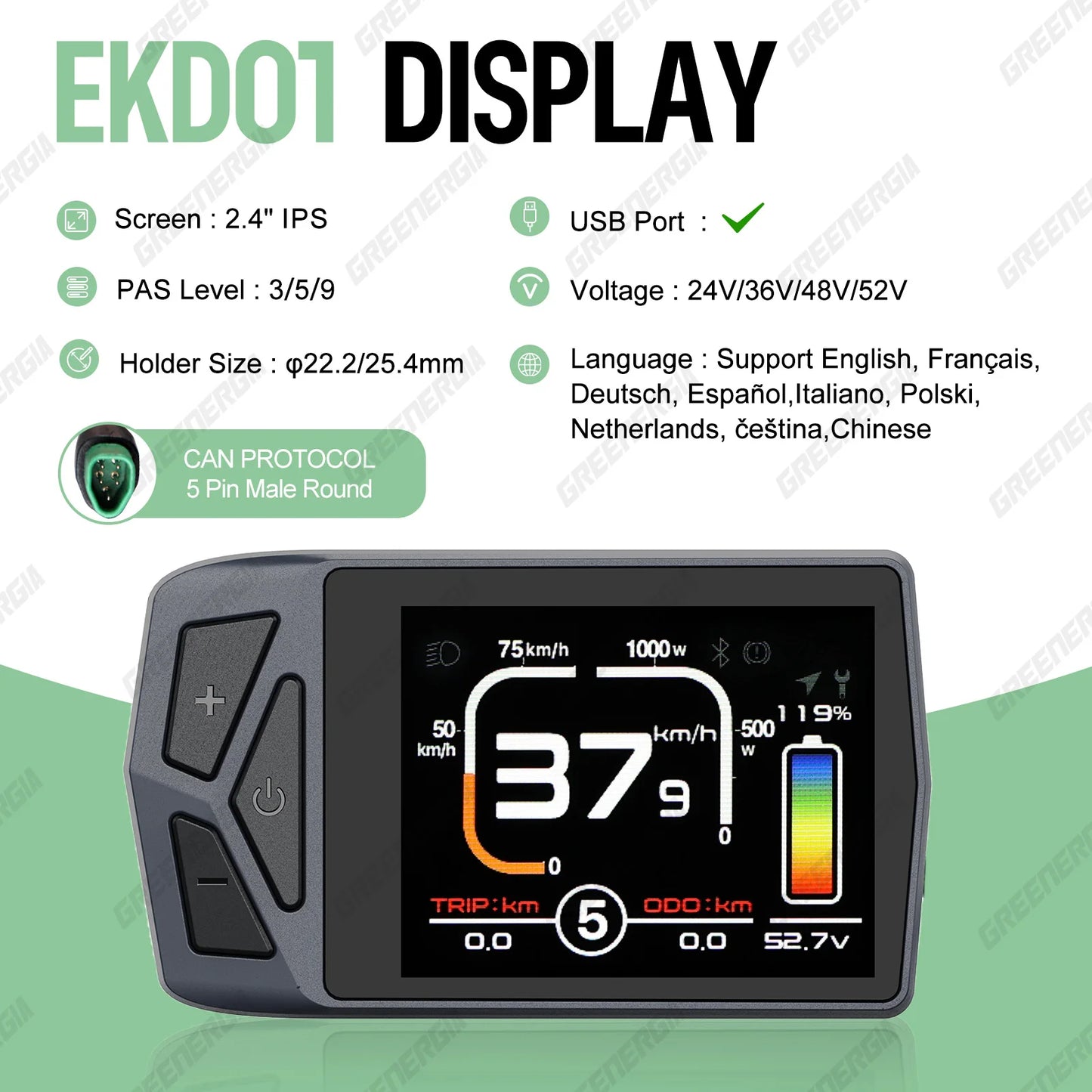

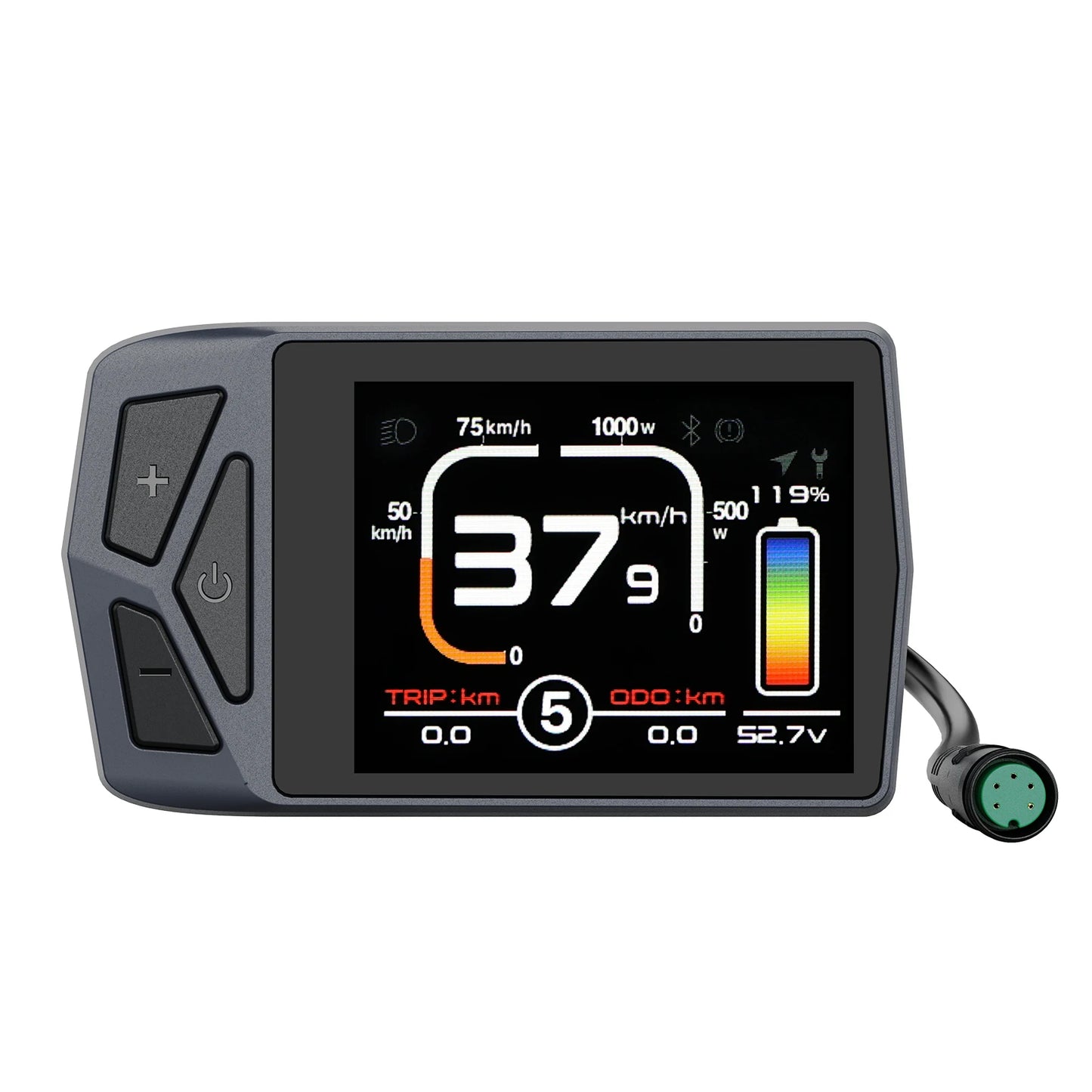

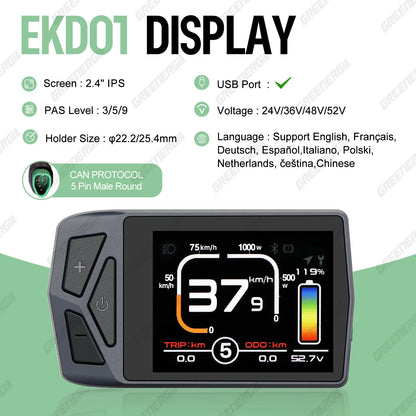

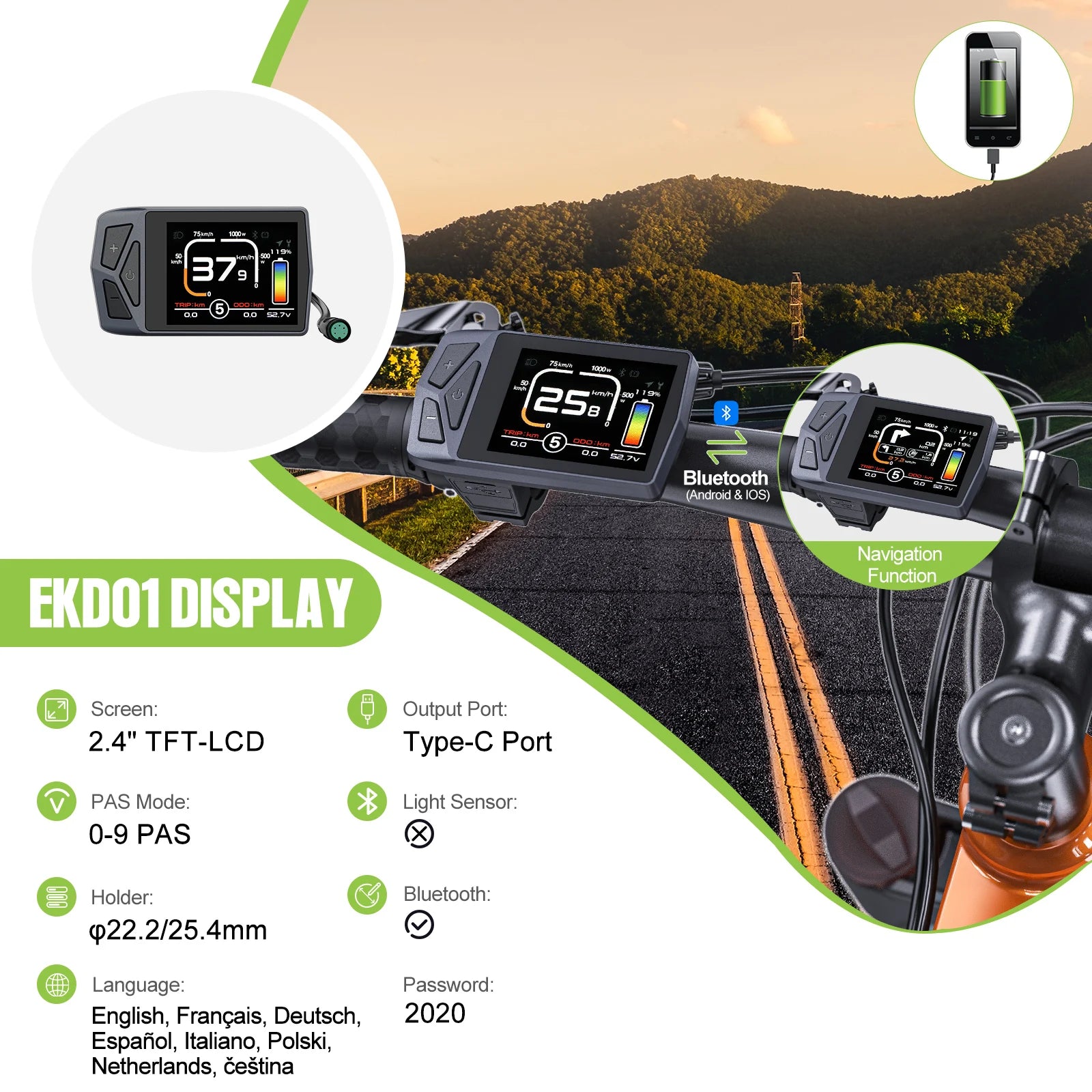

Bluetooth LCD E bike Display for BAFANG Kits

Bluetooth LCD E bike Display for BAFANG Kits

$73.99 USD
$0.00 USD $73.99 USD
Sale Sold out
Color
Ships From

SPECIFICATIONS

Bluetooth: 4.0+BLE



Brand Name: varstrom

Certification: CE/ROHS

Color: RGB

Communication Protocol: UART

Connector Length: 20cm

Connector Type: M5 Waterproof Connector

Dimensions: 86.8*50.5*12.5(mm)

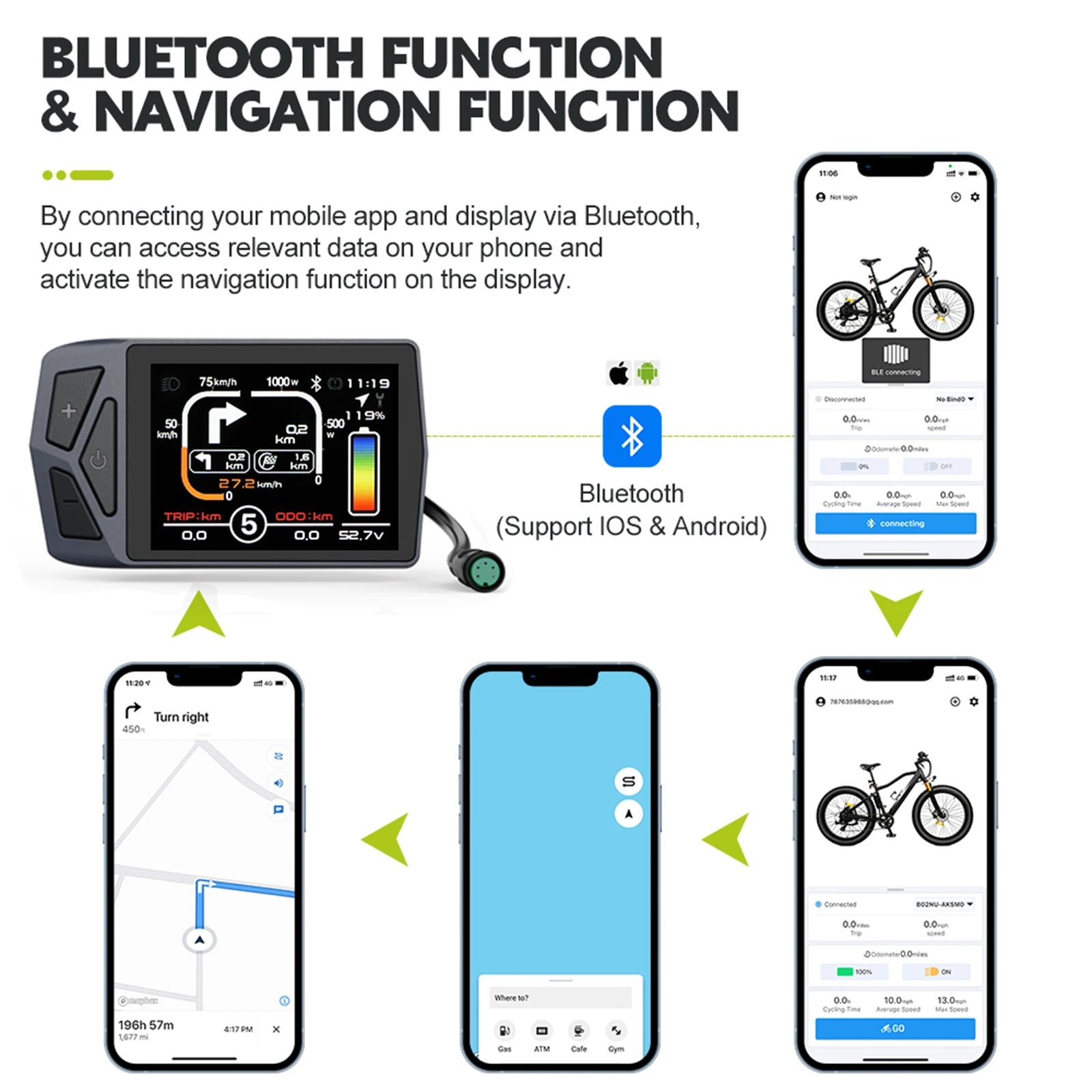

Function: Bluetooth & Navigation

Model: EKD01

PAS Mode: 0-3/0-5/0-9

Password of Advanced Setting: 2020

Resolution: 320*240px

Screen size: 2.4"

Type: Display

USB Charger: Type-C

Voltage: 12V/32V/48V/60V

Warranty: 30 days

Waterproof Grade: IPX5

Working Temperature: -20°C ~ 70°C



Recommend  Product

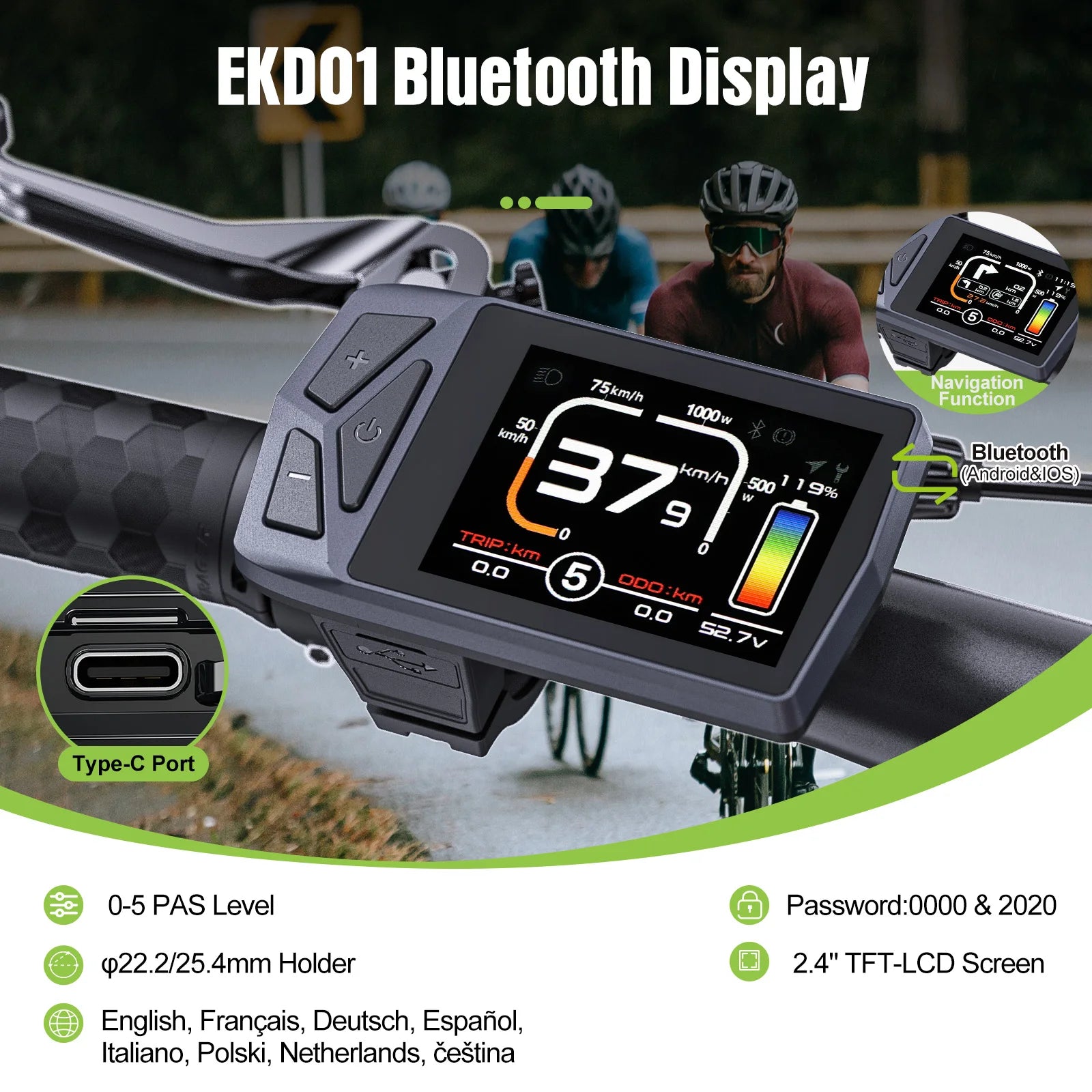

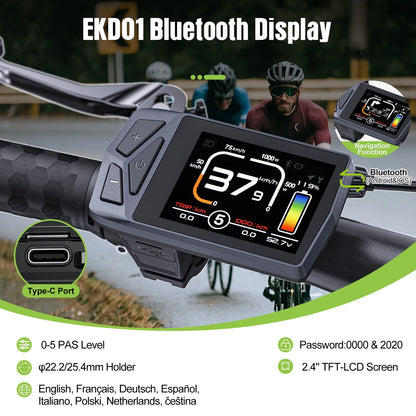

          EKD01 Bluetooth Display

BAFANG Intelligent Display for Ebike EKD01Bluetooth Function for 8Fun BBS02 BBSHD BBS01 Electric Mid Drive Kit, Compatible with Motor with UART Protocol (5PIN Female Plug)


About this article:

🟢 Easy to install: Only take several minutes to install this display on your electric bike. This LCD display designed ebikes accessory with simple operation for cycling enthusiasts to track their outdoor riding needs.

🟢 Wide applicability: Support 8 languages including English, German, Dutch, French, Italian, Spanish, Polish, Czech, applicable to more countries and regions.


🟢 Convenient operation, Kilometer / Mile can be set according to customers’ habits, 3-level/5-level/9-level optional, speed limit value and error code indicator, suitable for low temperature，Max -20℃ and real time power indicator, digital or analog.


🟢 Smart battery indicator : Provide a reliable battery indicator, real-time feedback on battery power, allowing you to precisely design your riding plan.



Warm Tips:

• Please pay attention to the screw’s torque value, damaged caused by excessive torque is not within the scope of the warranty.
• Do not plug in or unplug this display when the power to the unit is on.
• Avoid collisions.
• Protect the display’s membrane to provide water resistant performance.
• Do not attempt to reset parameters if the display is not working.


Specification :

Model: EKD01

Function:Bluetooth

New Function:Intelligent Navigation Function

Pas:0-3/0-5/0-9

Dimensions:86.8*50.5*12.5(mm)

Screen size:2.4"

Color:RGB

Resolution:320*240px

Waterproof Grade:IP67

Connector Type:M5 Waterproof Connector

Connector Length:20cm

Voltage:12V/32V/48V/60V

Working Temperature:-20°C-+70°C

Weight:67g

Communication Protocol:Uart

Speed Magetic:0-15

Bluetooth:4.0+BLE

Boost Magetic:2-63

Boost Ratio:0-255

USB Charger:Type-C

Password  ： 2020

Certification:CE/ROHS/REACH

Warranty:30 days
